Breathing systems for use with fabian ventilators

Product information
Downloads
Videos
Enquiry

A comprehensive range of breathing systems suitable for use with the Acutronic fabian™ High Frequency Oscillation (HFO) and the fabian evolution ventilators, offering conventional and high frequency ventilation choices. Using both Smoothbore and Flextube™ tubing, the range features dual and single heated wire systems, infant nasal CPAP system as well as a transport option.

We have included an nFlow™ heated wire breathing system and an nFlow™ adaptor kit to convert any of our featured breathing systems to fit the fabian™ HFO and fabian evolution ventilators. With a new detachable monitoring line allowing for out of incubator care we now offer a complete care solution for infant nasal CPAP.

fabian HFO and fabian evolution are trade names of Acutronics Medical Systems AG.

Fabian HFO and fabian evolution neonatal ventilator range information sheet (Issue 5)

Please send us your enquiry and we'll make sure the most appropriate person gets back to you as soon as possible.

Name*
Email*
Job title
Phone
Organisation
Country/area*
Product code*	Breathing systems for use with fabian ventilators
Enquiry*

* are compulsory sections of the form which need completing before your enquiry can be submitted.

Dray House, Molly Millars Lane, Wokingham, Berkshire, RG41 2PX

0118 9656 300

Products Airway Management Anaesthesia Critical Care Oxygen and Aerosol Therapy

Information News Events Support Privacy and Cookie policy

You are currently on the UK version of our website. To review products available for sale in the US please select the USA country site

Intersurgical reserves the right to discontinue or make changes or updates with respect to the catalogue or the content of the catalogue at any time without notice

Let's keep in touch!

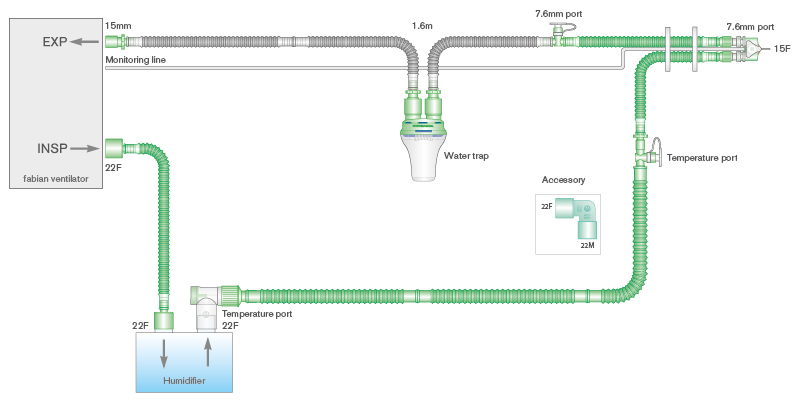

4071000	10mm Flextube single heated wire breathing system for use with Fabian® ventilators with water trap, monitor line and limb. ≥ 1.6m

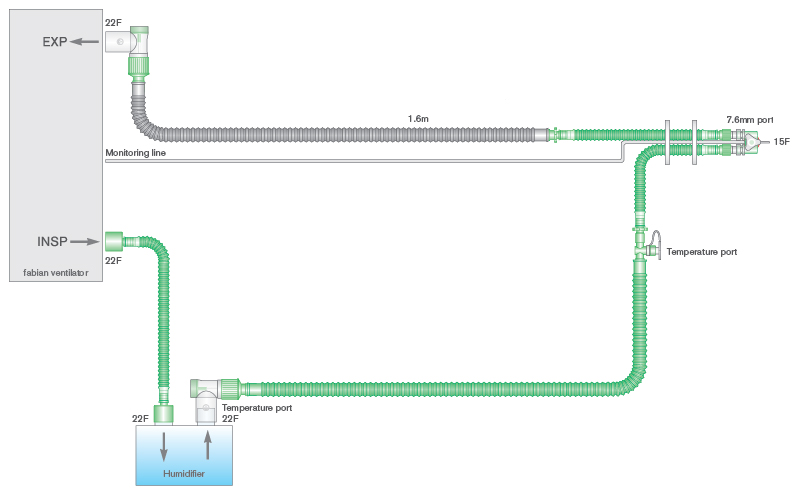

4072000	10mm Flextube dual heated wire breathing system for use with Fabian® ventilators with monitor line and limb. ≥ 1.6m

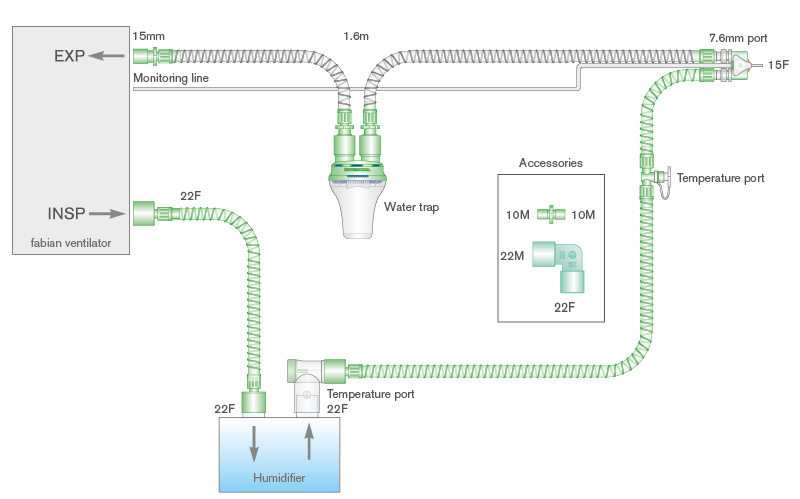

5071000	10mm Smoothbore single heated wire breathing system for use with Fabian® ventilators with water trap, monitor line and limb. ≥ 1.2m

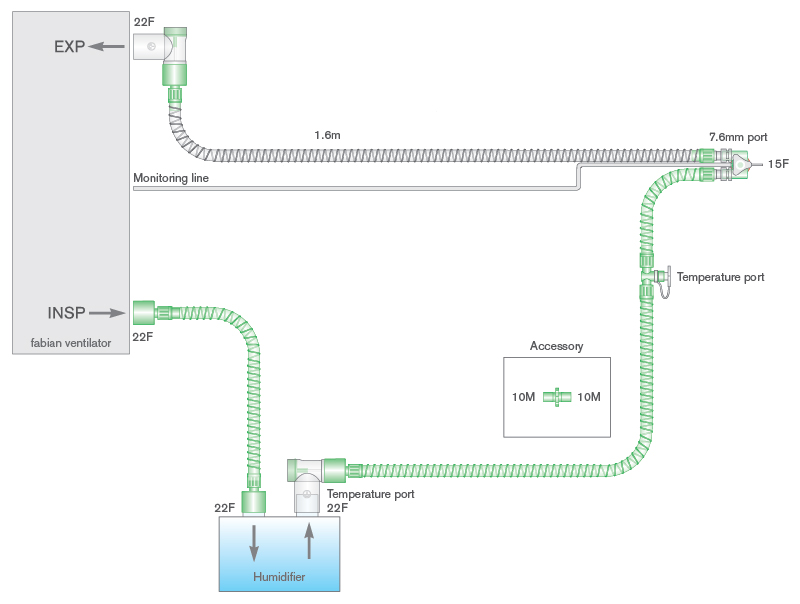

5072000	10mm Smoothbore dual heated wire breathing system for use with Fabian® ventilators with monitor line and limb. ≥ 1.2m

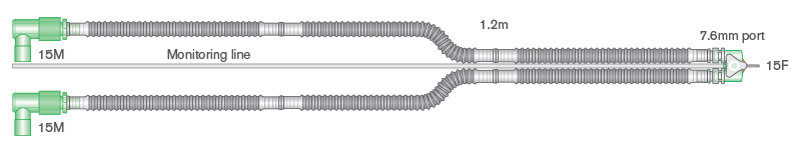

4650000	10mm Flextube™ transport breathing system with swivel Y-piece and monitor line for fabian ventilators, 1.2m

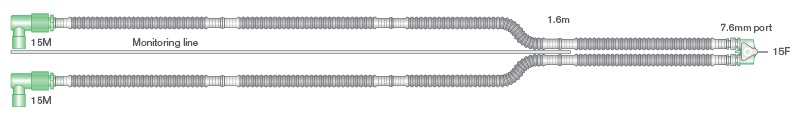

4652000	10mm Flextube™ transport breathing system with swivel Y-piece and monitor line for fabian ventilators, 1.6m
4760000	nFlow™ infant nasal CPAP adaptor kit with detachable monitoring line for Fabian ventilators. ≥ 1.6m
4761000	nFlow™ infant nasal CPAP heated wire breathing system with detachable monitoring line. ≥ 1.8m

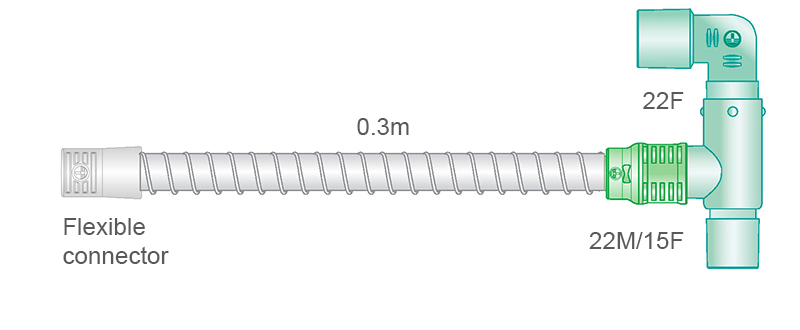

4651000	HFO adapter kit to modify fabian breathing systems to HFO ventilation
